### PK calculation of IV and oral dosing in JAGS

I am examining IV and oral dosing of problem of Chapter 6, Question 6 or Roland and Tozer Rowland and Tozer (Clinical pharmacokinetics and pharmacodynamics, 4th edition) with Jags. In this problem one subject gets an IV and an oral dose.

### Data

The data looks a bit irregular in the beginning of the curves, but seems well behaving nonetheless.
IV <- data.frame(
time=c(0.33,0.5,0.67,1.5,2,4,6,10,16,24,32,48),
conc=c(14.7,12.6,11,9,8.2,7.9,6.6,6.2,4.6,3.2,2.3,1.2))
Oral <- data.frame(
time=c(0.5,1,1.5,2,4,6,10,16,24,32,48),
conc=c(2.4,3.8,4.2,4.6,8.1,5.8,5.1,4.1,3,2.3,1.3))

plot(conc~time,data=IV[1:12,],log='y',col='blue',type='l')
with(Oral,lines(y=conc,x=time,col='red'))

### Jags model

A n umber of questions are asked. It is the intention the model gives posteriors for all. Priors are on clearance, volume and a few other variables. The increasing part of the oral curve is modeled with a second compartment. The same is true for the sharp decreasing part of the IV model. However, where the increasing part is integral part of the PK calculations, the decreasing part of IV is subsequently ignored. I have been thinking of removing these first points, but in the end rather than using personal judgement I just modeled them so I could ignore them afterwards.
library(R2jags)
datain <- list(
timeIV=IV\$time,
concIV=IV\$conc,
nIV=nrow(IV),
doseIV=500,
timeO=Oral\$time,
concO=Oral\$conc,
nO=nrow(Oral),
doseO=500)

model1 <- function() {
tau <- 1/pow(sigma,2)
sigma ~ dunif(0,100)
# IV part
kIV ~dnorm(.4,1)
cIV ~ dlnorm(1,.01)
for (i in 1:nIV) {
predIV[i] <- c0*exp(-k*timeIV[i]) +cIV*exp(-kIV*timeIV[i])
concIV[i] ~ dnorm(predIV[i],tau)
}
c0 <- doseIV/V
V ~ dlnorm(2,.01)
k <- CL/V
CL ~ dlnorm(1,.01)
AUCIV <- doseIV/CL+cIV/kIV
# oral part
for (i in 1:nO) {
predO[i] <- c0star*(exp(-k*timeO[i])-exp(-ka*timeO[i]))
concO[i] ~ dnorm(predO[i],tau)
}
c0star <- doseO*(ka/(ka-k))*F/V
AUCO <- c0star/k
F ~ dunif(0,1)
ka ~dnorm(.4,1)
ta0_5 <- log(2) /ka
t0_5 <- log(2)/k
}

parameters <- c('k','AUCIV','CL','V','t0_5','c0',
'AUCO','F','ta0_5','ka','c0star',
'kIV','cIV','predIV','predO')
inits <- function()
list(
sigma=rnorm(1,1,.1),
V=rnorm(1,25,1),
kIV=rnorm(1,1,.1),
cIV = rnorm(1,10,1),
CL = rnorm(1,5,.5),
F = runif(1,0.8,1),
ka = rnorm(1,1,.1)
)
jagsfit <- jags(datain, model=model1,
inits=inits, parameters=parameters,progress.bar="gui",
n.chains=4,n.iter=14000,n.burnin=5000,n.thin=2)

#### Quality of fit

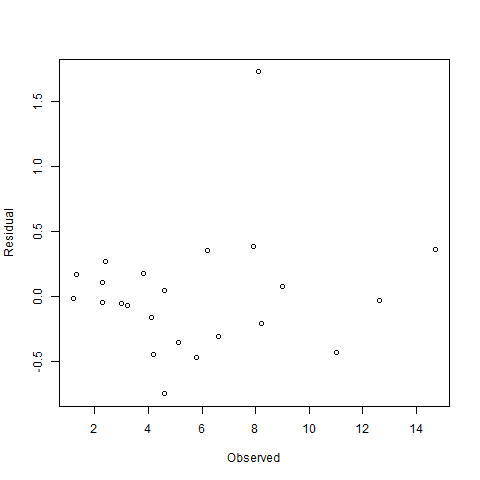

A plot of the posterior fit against the original data. It would seem we have an outlier.
cin <- c(IV\$conc,Oral\$conc)
mIV <- sapply(1:ncol(jagsfit\$BUGSoutput\$sims.list\$predIV),
function(x) {
mean(jagsfit\$BUGSoutput\$sims.list\$predIV[,x])
}
)
mO  <- sapply(1:ncol(jagsfit\$BUGSoutput\$sims.list\$predO),
function(x) {
mean(jagsfit\$BUGSoutput\$sims.list\$predO[,x])
}
)
plot(x=c(IV\$conc,Oral\$conc),y=c(IV\$conc,Oral\$conc)-c(mIV,mO))

We have the following posteriors:
Inference for Bugs model at "C:/...BEnL/model1b6027171a7a.txt", fit using jags,
4 chains, each with 14000 iterations (first 5000 discarded), n.thin = 2
n.sims = 18000 iterations saved
mu.vect sd.vect    2.5%     25%     50%     75%   97.5%  Rhat n.eff
AUCIV      219.959  16.975 189.743 208.636 218.846 230.210 256.836 1.002  2800
AUCO       200.468  15.102 171.908 190.523 199.987 209.928 231.722 1.001  7500
CL           2.346   0.182   1.995   2.226   2.344   2.461   2.712 1.002  2900
F            0.876   0.052   0.773   0.841   0.876   0.911   0.976 1.002  3200
V           56.463   2.752  51.610  54.583  56.280  58.112  62.465 1.002  3100
c0           8.876   0.426   8.005   8.604   8.884   9.160   9.688 1.002  3100
c0star       8.314   0.615   7.119   7.911   8.304   8.704   9.574 1.002  2000
cIV         11.229   2.485   7.029   9.511  11.003  12.654  16.804 1.003  1100
k            0.042   0.004   0.034   0.039   0.042   0.044   0.050 1.002  2200
kIV          2.064   0.510   1.132   1.704   2.041   2.396   3.126 1.004   800
ka           0.659   0.105   0.489   0.589   0.646   0.715   0.903 1.002  3200
predIV[1]   14.343   0.532  13.240  14.009  14.355  14.690  15.378 1.002  2500
predIV[2]   12.637   0.331  11.990  12.422  12.632  12.851  13.298 1.001 12000
predIV[3]   11.435   0.357  10.755  11.196  11.427  11.667  12.147 1.002  1600
predIV[4]    8.923   0.326   8.333   8.709   8.902   9.116   9.638 1.002  2900
predIV[5]    8.410   0.298   7.845   8.213   8.401   8.594   9.021 1.001 14000
predIV[6]    7.522   0.286   6.943   7.340   7.525   7.713   8.064 1.001  5900
predIV[7]    6.910   0.255   6.385   6.749   6.915   7.077   7.399 1.001  6200
predIV[8]    5.848   0.222   5.406   5.704   5.849   5.993   6.285 1.001  7800
predIV[9]    4.557   0.231   4.098   4.409   4.555   4.707   5.012 1.001  4500
predIV[10]   3.270   0.252   2.781   3.107   3.267   3.433   3.773 1.002  3100
predIV[11]   2.349   0.251   1.867   2.183   2.343   2.509   2.865 1.002  2700
predIV[12]   1.217   0.207   0.839   1.076   1.204   1.343   1.662 1.002  2500
predO[1]     2.138   0.214   1.750   1.995   2.124   2.263   2.599 1.001  8700
predO[2]     3.626   0.293   3.070   3.432   3.616   3.807   4.234 1.001 12000
predO[3]     4.653   0.306   4.050   4.452   4.652   4.847   5.264 1.001 16000
predO[4]     5.351   0.294   4.754   5.161   5.354   5.541   5.930 1.001 15000
predO[5]     6.375   0.277   5.801   6.202   6.383   6.562   6.894 1.002  3200
predO[6]     6.274   0.308   5.629   6.079   6.286   6.485   6.842 1.002  2800
predO[7]     5.455   0.292   4.852   5.270   5.461   5.648   6.018 1.002  3900
predO[8]     4.262   0.245   3.764   4.106   4.265   4.423   4.736 1.001  8600
predO[9]     3.057   0.227   2.605   2.910   3.058   3.207   3.504 1.001  8200
predO[10]    2.195   0.218   1.773   2.050   2.192   2.335   2.638 1.001  5200
predO[11]    1.135   0.180   0.805   1.013   1.127   1.247   1.519 1.002  3500
t0_5        16.798   1.713  13.830  15.655  16.652  17.770  20.617 1.002  2200
ta0_5        1.077   0.164   0.768   0.969   1.072   1.177   1.419 1.002  3200
deviance    38.082   5.042  30.832  34.357  37.207  40.918  50.060 1.003  1200

For each parameter, n.eff is a crude measure of effective sample size,
and Rhat is the potential scale reduction factor (at convergence, Rhat=1).

DIC info (using the rule, pD = var(deviance)/2)
pD = 12.7 and DIC = 50.8
DIC is an estimate of expected predictive error (lower deviance is better).
t1/2=16.7 hr, AUCiv=217 mg-hr/L, AUCoral=191 mg-hr/L, CL=2.3 L/hr, V=55L, F=0.88
While the point estimates are close, the s.d. seem quite large.

#### Plot of models

A plot of the predicted concentration time curves, with confidence intervals. The wider intervals at the low end of the concentrations are due to the logarithmic scale.
tpred <- 0:48
simO <- sapply(1:jagsfit\$BUGSoutput\$n.sims,function(x) {
jagsfit\$BUGSoutput\$sims.list\$c0star[x]*
(exp(-jagsfit\$BUGSoutput\$sims.list\$k[x]*tpred)
-exp(-jagsfit\$BUGSoutput\$sims.list\$ka[x]*tpred))
})
predO <- data.frame(mean=rowMeans(simO),sd=apply(simO,1,sd))

simIV <- sapply(1:jagsfit\$BUGSoutput\$n.sims,function(x) {
jagsfit\$BUGSoutput\$sims.list\$c0[x]*
(exp(-jagsfit\$BUGSoutput\$sims.list\$k[x]*tpred)
+exp(-jagsfit\$BUGSoutput\$sims.list\$kIV[x]*tpred))
})
predIV <- data.frame(mean=rowMeans(simIV),sd=apply(simIV,1,sd))

plot(conc~time,data=IV[1:12,],log='y',col='blue',type='p',ylab='Concentration')
with(Oral,points(y=conc,x=time,col='red'))
lines(y=predO\$mean,x=tpred,col='red',lty=1)
lines(y=predO\$mean+1.96*predO\$sd,x=tpred,col='red',lty=2)
lines(y=predO\$mean-1.96*predO\$sd,x=tpred,col='red',lty=2)
lines(y=predIV\$mean,x=tpred,col='blue',lty=1)
lines(y=predIV\$mean+1.96*predIV\$sd,x=tpred,col='blue',lty=2)
lines(y=predIV\$mean-1.96*predIV\$sd,x=tpred,col='blue',lty=2)

1. Nice post!

I translated your model and data to Stan format, fit it, and posted the results on Gelman's blog, in the post Stan Model of the Week: PK Calculation of IV and Oral Dosing. Oddly, the results are a bit different, though both contain your reported "correct" values in their posterior 95% intervals.

Andrew, Daniel Lee, and I have been working with Frederic Bois on adding ODE solvers to Stan (along the lines of PKBUGS), so we've been thinking about PK/PD models a lot lately.

1. I had mistranslated the lognormal priors as normal; with that fix, Stan and JAGS produce the same results.

2. Wingfeet,

Can you comment how did you choose pretty informative log normal priors? Why priors for kIV and ka are normal - and quite tight?

Thank you

1. Hi Linas,

That is a good question. These priors even allow negative k, which on consideration I think is fairly strange. Probably these should have been log normal. dlnorm(.4,.1) seems a much better choice.
